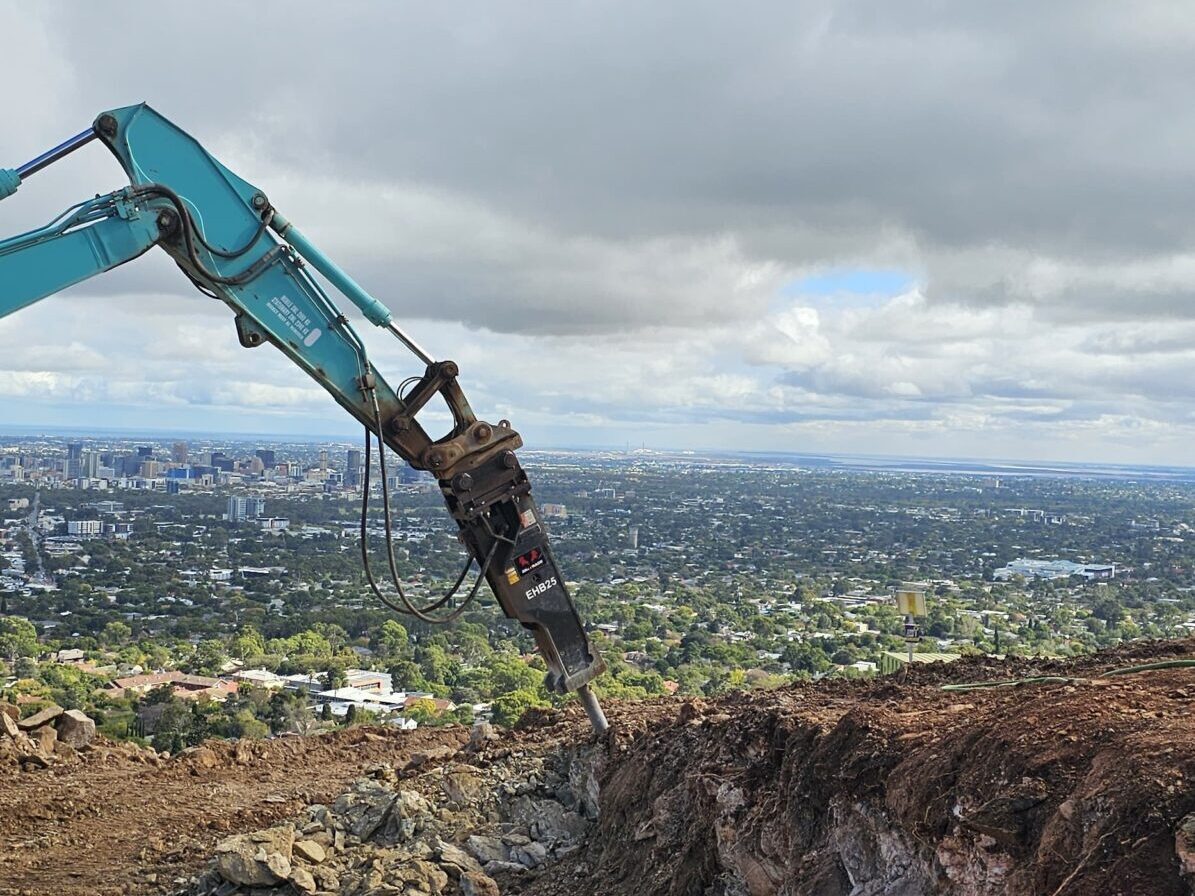

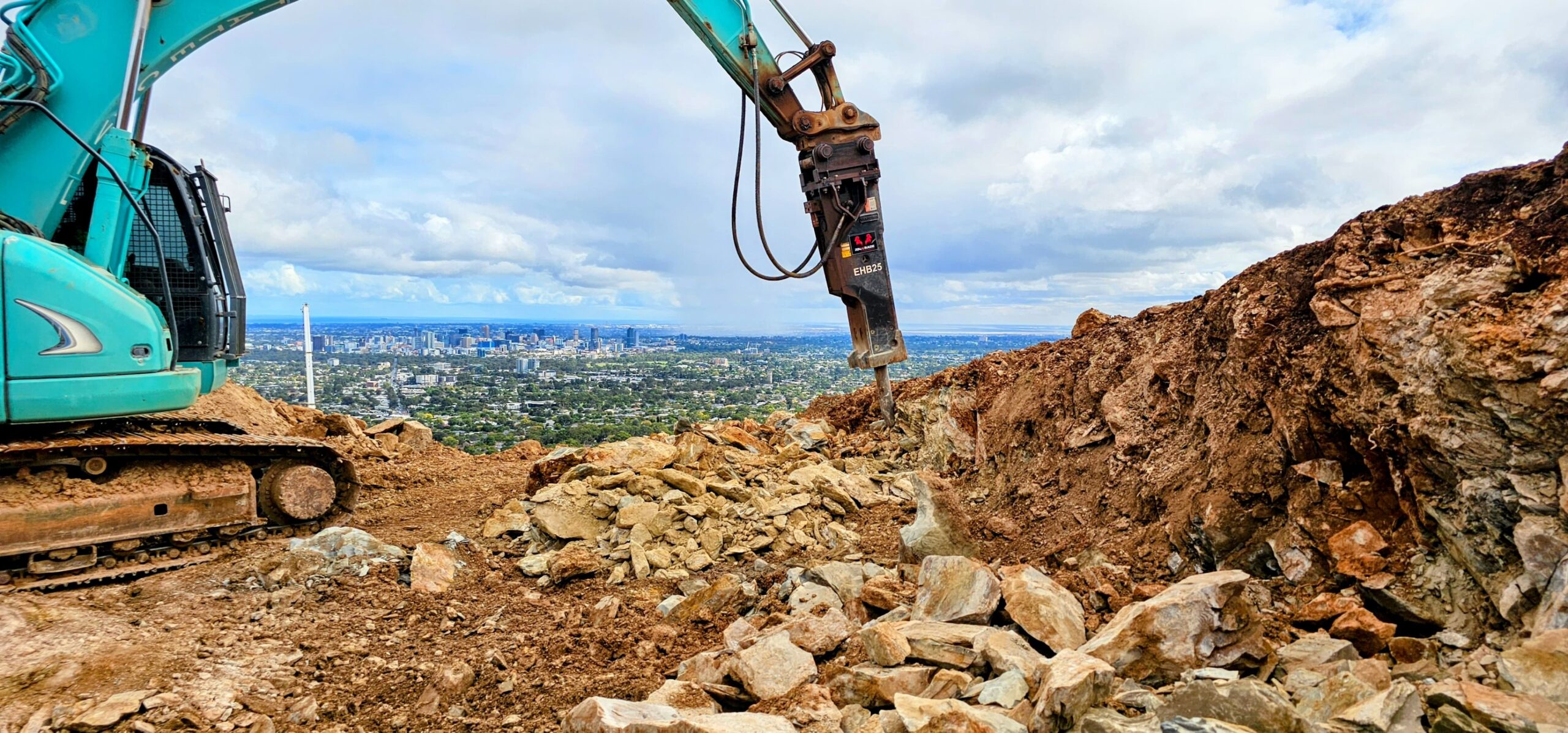

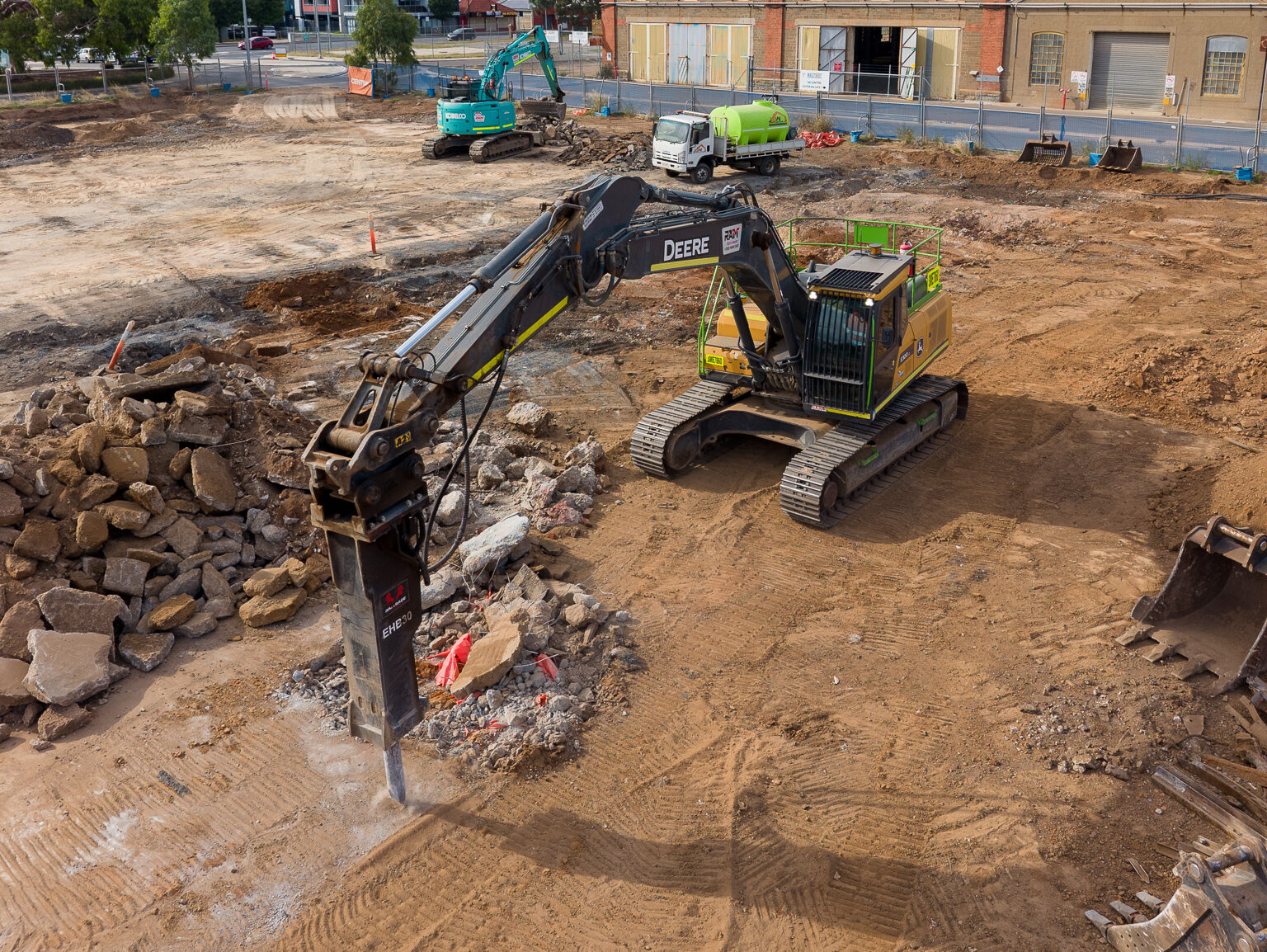

RAMRADE Rock Breaker by Everdigm
RAMRADE Rock Breakers by Everdigm
RAMRADE Rock Breaker by Everdigm
RAMRADE Rock Breakers by Everdigm

ABOUT

RAMRADE Rock Breakers by Everdigm

Our Rock breakers are built with high strength steel to withstand the toughest jobs and extreme conditions. These rock breakers incorporate excellent hydraulics with high frequency and impact energy. With great features such as noise reduction technology, large monobloc housing, and super shock absorber elements. The RAMRADE Rock Breakers by Everdigm is an industry-leading brand. They ensure a profitable investment that pays for itself over and over again.

RAMRADE Rock Breakers by Everdigm suit a wide range of excavators from 14 to 50 tonne. Also suits a wide range of popular excavator brands because of the custom built head bracket.



About RAMRADE Attachments

RAMRADE Attachments is a world-class supplier of high-quality attachments to suit your excavator, skid steer, and other earthmoving equipment. They are manufactured to exceed rigorous global standards, and utilizing the most advanced technology. What’s more, these attachments are extensively field and factory tested to produce an outstanding range that consistently delivers. Browse the RAMRADE range.

All attachments come with the necessary pins, bolts, tools, washers, gauges, and hoses for D.I.Y setup and maintenance. Owners can be confident in their ability to complete their jobs on time backed by efficient attachments!

For all your construction equipment and attachment hire needs, visit the RAM Equipment website for more details.

SPECS

Weight N/A
Dimensions N/A
Brands

EHB13

Pick-up Dimensions: Custom build
Excavator Weight: 12 – 20 tonne
Weight: 1,029 kg
Required Oil Flow Range: 80 – 140 Lpm
Operating Pressure: 140 – 180 Bar
Impact Energy: 2,150 – 2,500 joule
Chisel Diameter: 105 mm
EHB20

Pick-up Dimensions: Custom build
Excavator Weight: 16 – 25 tonne
Weight: 1,539 kg
Required Oil Flow Range: 100 – 150 Lpm
Operating Pressure: 160 – 180 Bar
Impact Energy: 2,800 – 3,500 joule
Chisel Diameter: 125 mm
EHB25

Pick-up Dimensions: Custom build
Excavator Weight: 20 – 30 tonne
Weight: 1,799 kg
Required Oil Flow Range: 130 – 180 Lpm
Operating Pressure: 160 – 180 Bar
Impact Energy: 3,200 – 4,300 joule
Chisel Diameter: 135 mm

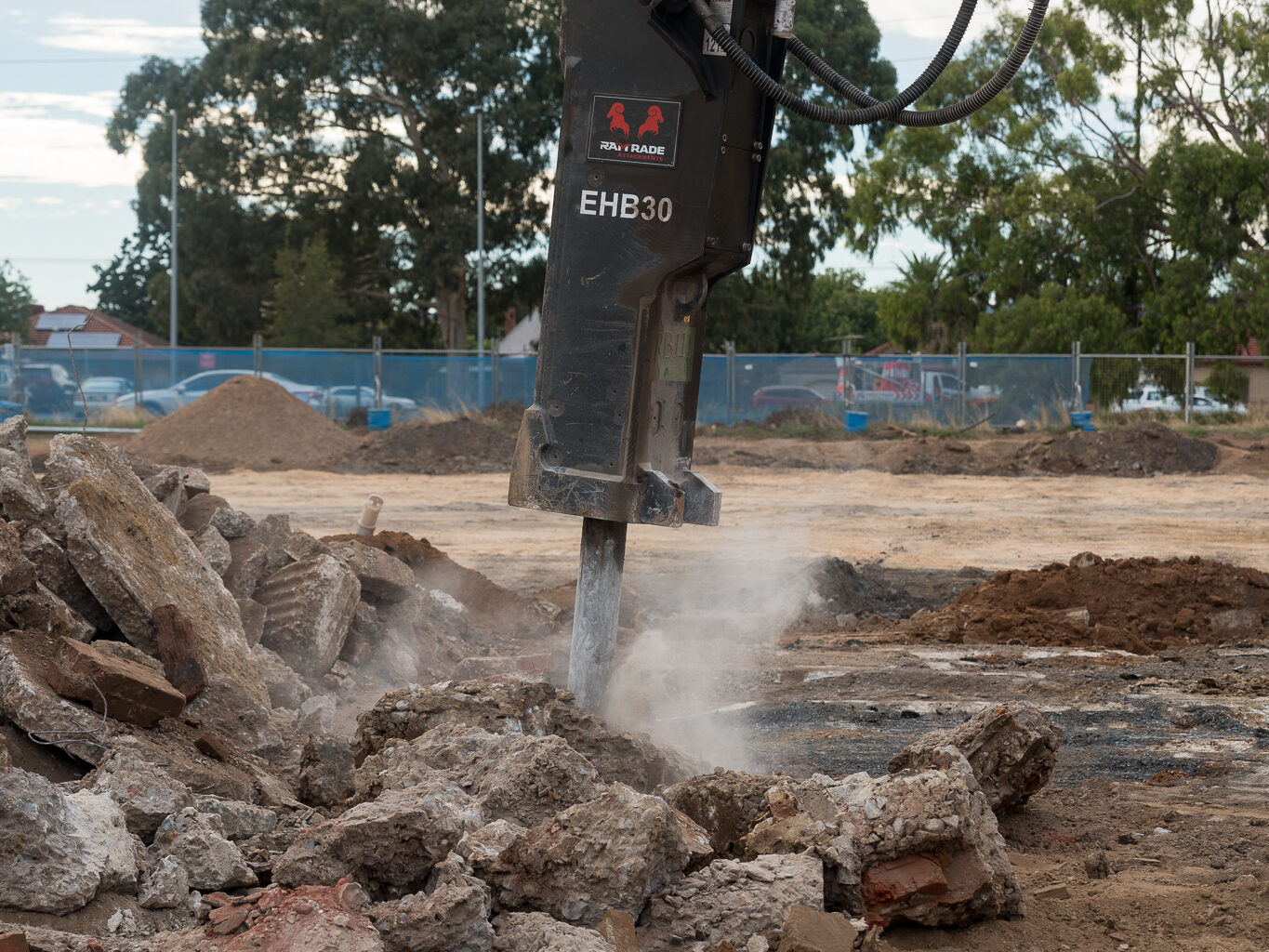

EHB30

Pick-up Dimensions: Custom build
Excavator Weight: 26 – 35 tonne
Weight: 2,461 kg
Required Oil Flow Range: 170 – 240 Lpm
Operating Pressure: 165 – 185 Bar
Impact Energy: 4,200 – 6,100 joule
Chisel Diameter: 150 mm

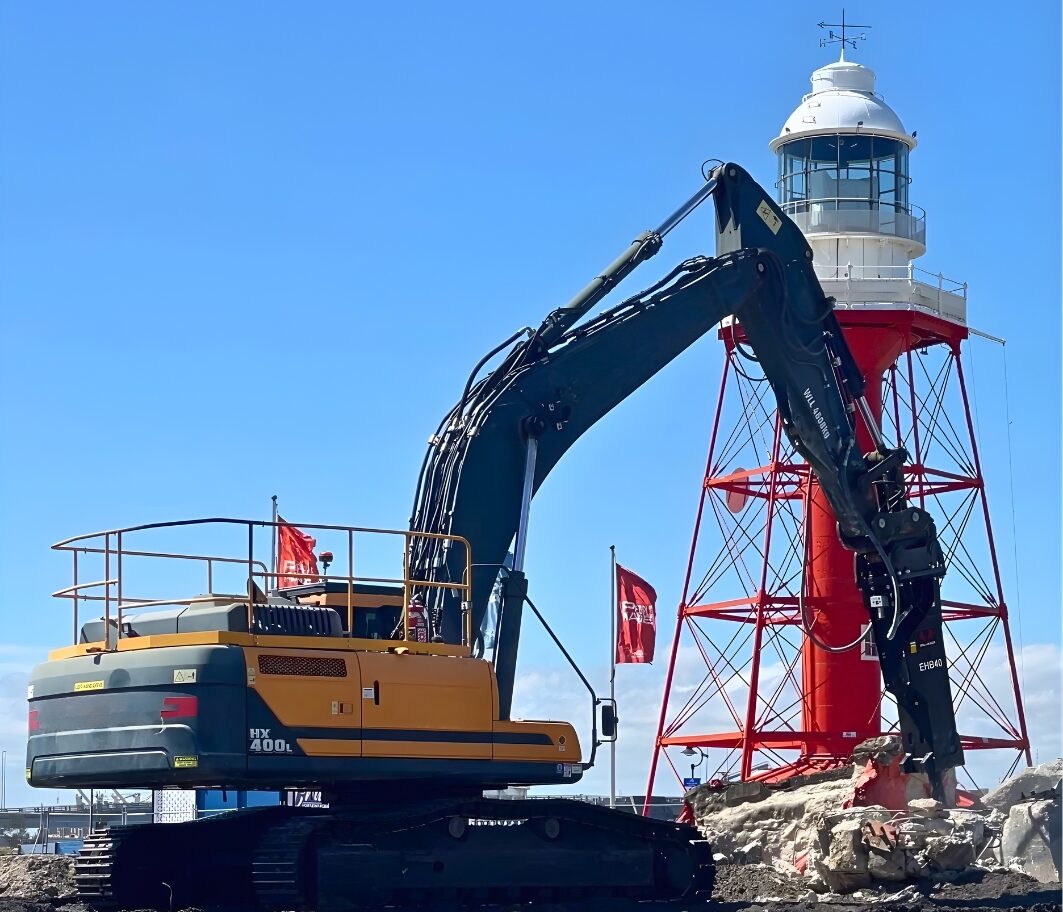

EHB40

Pick-up Dimensions: Custom build
Excavator Weight: 32 – 45 tonne
Weight: 3,433 kg
Required Oil Flow Range: 200 – 280 Lpm
Operating Pressure: 165 – 185 Bar
Impact Energy: 6,000 – 7,600 joule
Chisel Diameter: 165 mm
EHB50

Pick-up Dimensions: Custom build
Excavator Weight: 40 – 70 tonne
Weight: 4,119 kg
Required Oil Flow Range: 230 – 330 Lpm
Operating Pressure: 165 – 185 Bar
Impact Energy: 7,900 – 10,400 joule
Chisel Diameter: 180 mm

RAMRADE Rock Breakers by Everdigm

The RAMRADE Rock Breaker by Everdigm provides power, reliability, durability, efficiency and advanced performance. Whilst the prime series of rock breakers are silenced for sound sensitive job sites, they still provide the ultimate power for large demolition sites and extreme conditions. Features include a dual speed control system, anti-blank firing system, auto-start and auto-stop function, a single high-pressure accumulator and auto lube systems on larger models.

  • Size range between 12 - 70 tonne excavators
  • Designed for extreme conditions
  • Noise reduction technology
  • High pressure accumulator
  • Auto-lube system
  • Fully shock absorbed
Quick Quote
Specification Sheet

Quick Quote

Simply enter your details below and our team will be in touch with a quote the next business day.

Quick Quote

  • Download Specification Sheet
  • Download Specification Sheet
    • RAM Equipment logo

    The RAM Difference – we do more, so you can too!

    RAM Equipment is a specialised equipment hire company. Our dedicated team is committed to exceeding your expectations. As your efficient equipment solutions specialists, we will work closely with you to plan and execute your project, ensuring you have the most efficient machines for the job. We also have a wide range of attachments to suit.

    For your next excavating hire or purchase, speak to us and experience the RAM Difference today. Get in touch!
