RAMRADE Vibe Plate attachment on white background
Compaction Vibe Plate 2
Compaction Vibe Plate, on white background.
  1. RAMRADE Vibe Plate attachment on white background
  2. Compaction Vibe Plate 2
  3. Compaction Vibe Plate, on white background.

Buy:

RAMRADE Vibe Plate

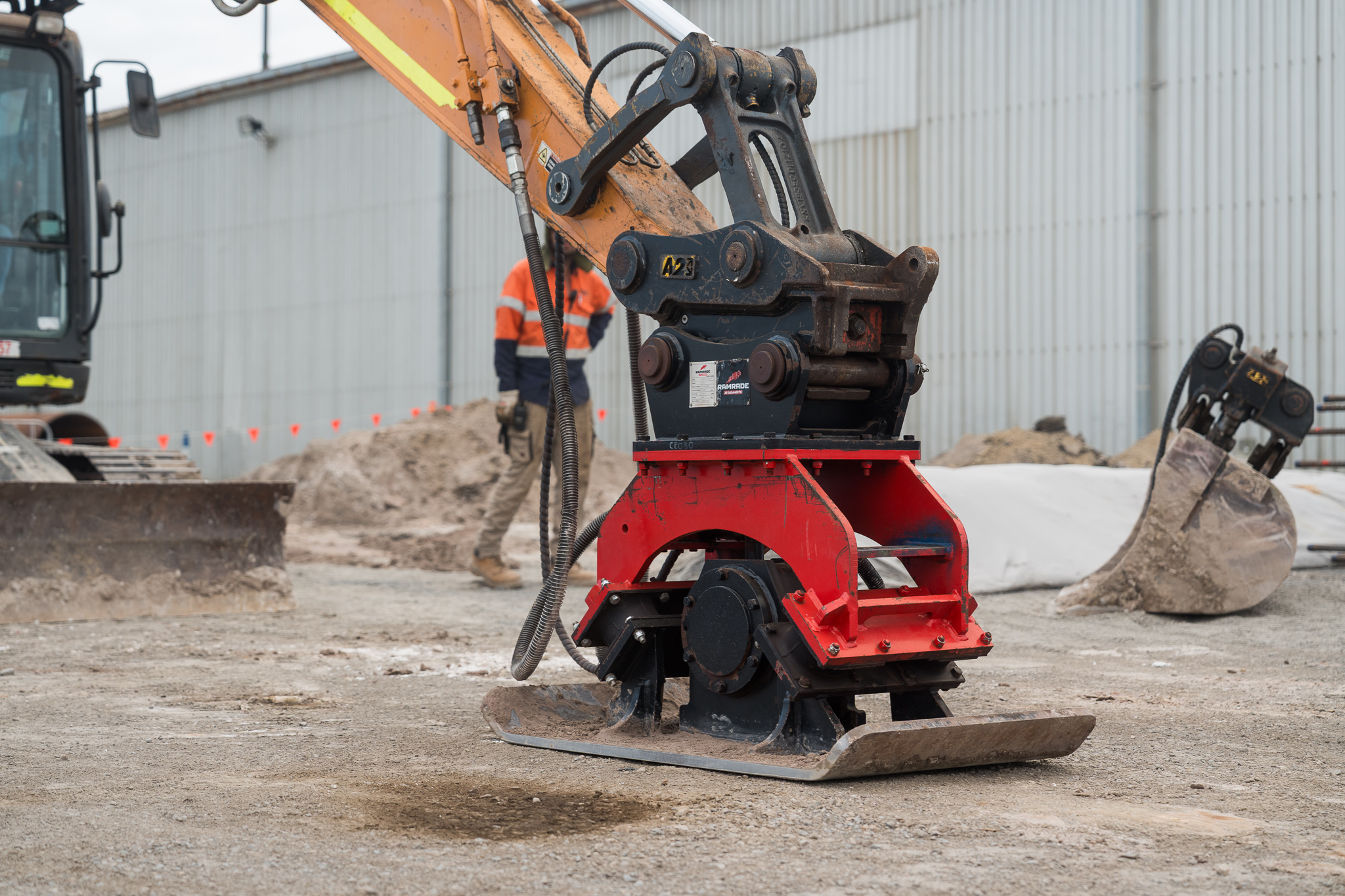

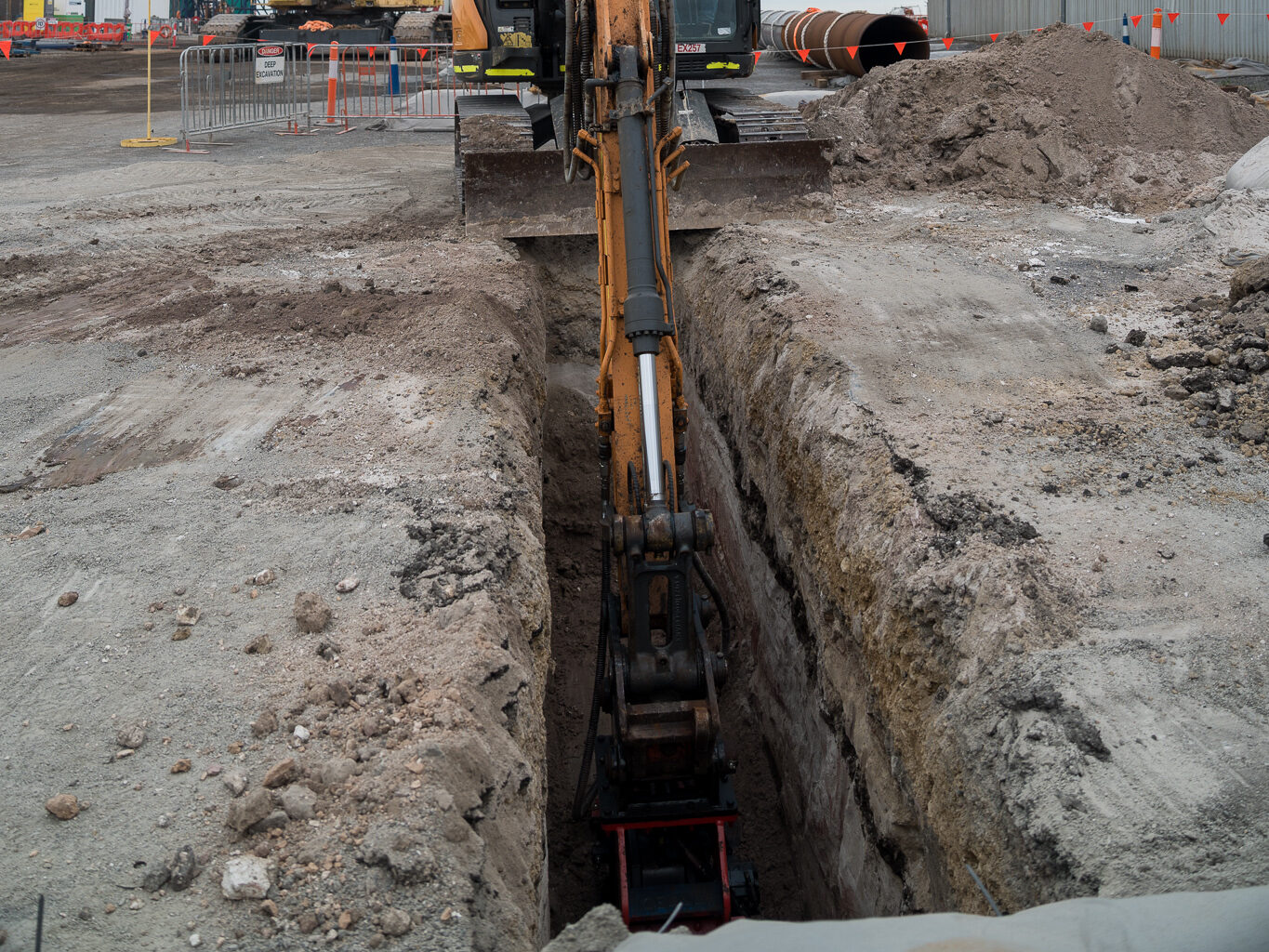

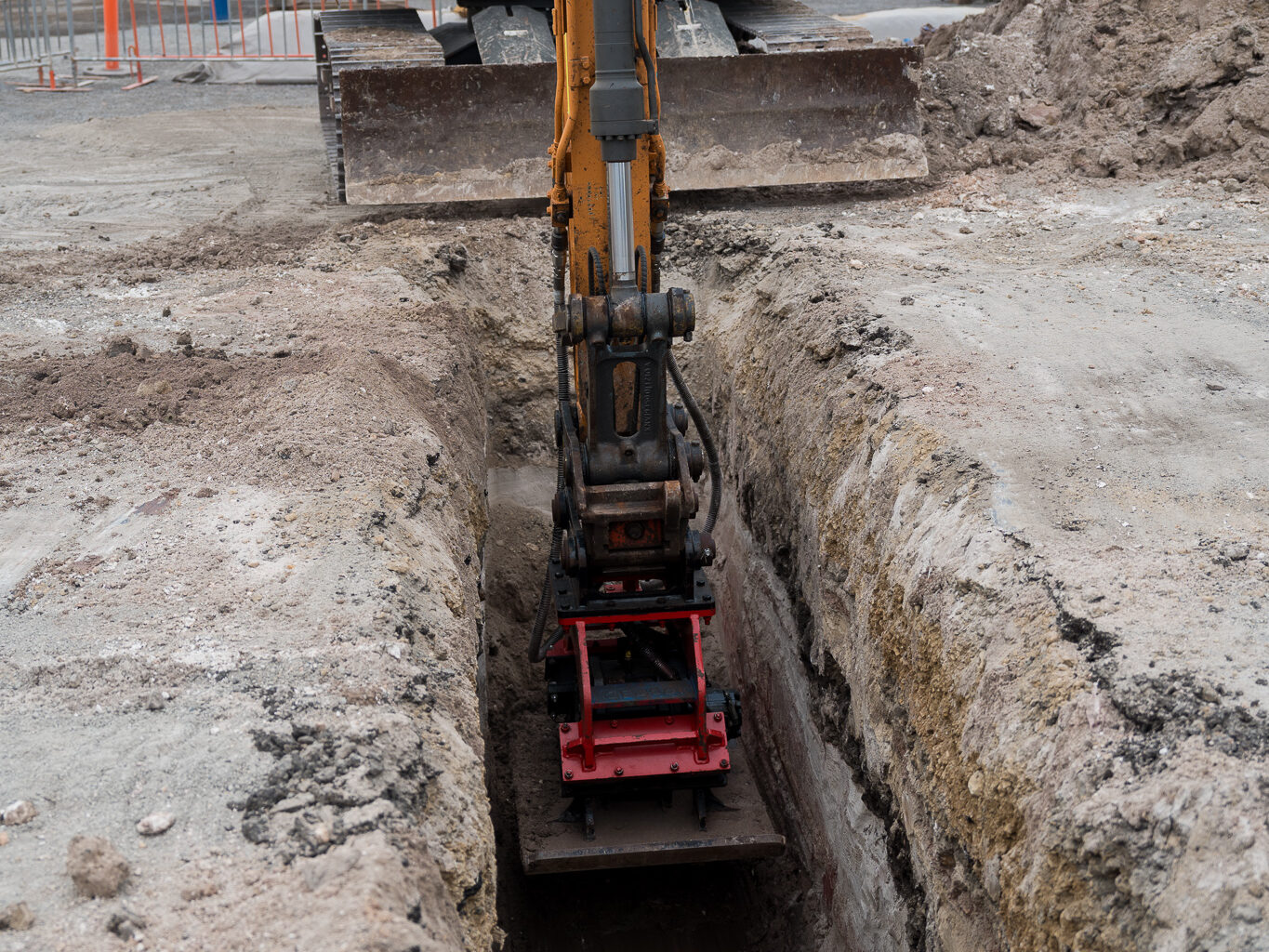

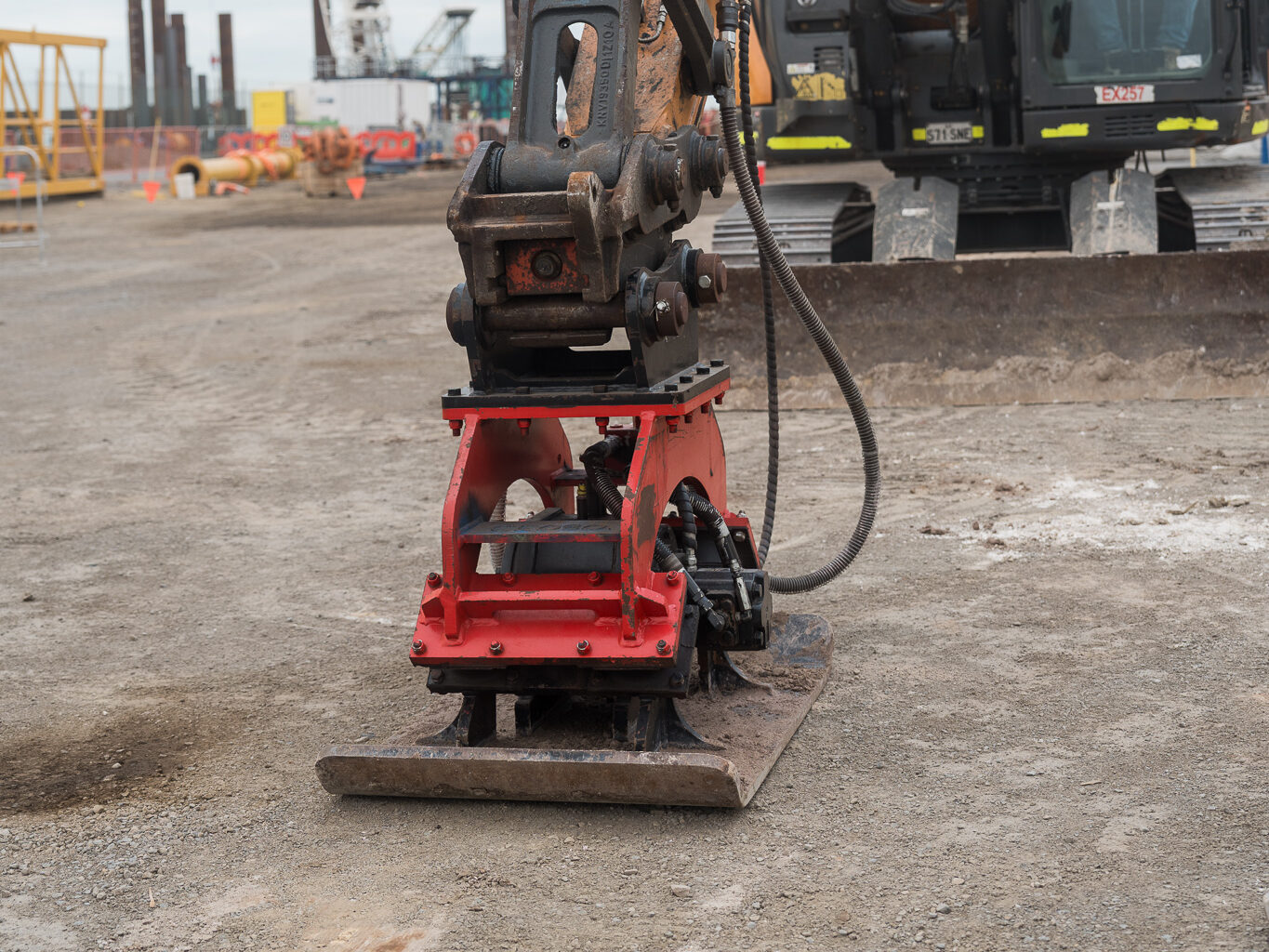

The RAMRADE Vibe Plate attachment is ideal for compacting soil in deep excavation and trenches.

  • Highly durable and heavy duty
  • Massive compaction force and great reliability
  • Fully shock absorbed
  • Noise reduction technology
  • Easy to operate
  • Virtually zero maintenance

Order today!

Simply add this attachment to your cart to create an online order. Our team will then be in touch with confirmation of availability and to arrange for delivery. It’s that easy.

RAMRADE Vibe Plate attachment on white background

$133.32 - $244.42$8,712.00 - $18,392.00

Clear
Note: pricing includes GST
  • Date Format: DD slash MM slash YYYY
  • Date Format: DD slash MM slash YYYY

ABOUT

The RAMRADE Vibe Plate is ideal for compacting soil in deep excavation and trenches. Also known as a compactor plate, the RAMRADE Vibe Plate offers massive compaction force and great reliability.

Most importantly, it offers increased safety as there is no longer any need to be directly in the workspace.

Simple to operate, it can be fitted to quick-couplers and standard adapter plates. Fully shock absorbed, it suits excavators from 5 to 32 tonne. It also suits a wide range of popular excavator brands: Hitachi, Kobelco and Kubota

About RAMRADE Attachments

RAMRADE Attachments is a world-class supplier of high-quality attachments to suit your excavator, skid steer, and other earthmoving equipment. They are manufactured to exceed rigorous global standards, and utilizing the most advanced technology. What’s more, these attachments are extensively field and factory tested to produce an outstanding range that consistently delivers. Browse the RAMRADE range.

SPECS

Brands

Application

Availability

,

Sizes Available

VC30-5 to suit 4-5 tonne Excavators
VC30-8 to suit 7-9 tonne Excavators
VC60 to suit 11-14 tonne Excavators
VC80 to suit 20-25 tonne Excavators
VC90 to suit 29-35 tonne Excavators
VC100 to suit 29-35 tonne Excavators
Machine Type

VC30-5

Machine Size: 4-5 tonne
Impulse Force: 4 tonne
Vibration: 600 – 2000 rpm
Required Oil Flow: 45-75 lpm
Capacity: 55 cc/rev
Pressure: 150 – 210 kg/cm2
Plate Dimensions: 950x550x25 (LxWxT) mm
Height: 800 mm
Weight: 350 kg
Pick up dimensions: 45-170-245 mm
VC30-8

Machine Size: 7-9 tonne
Impulse Force: 4 tonne
Vibration: 600 – 2000 rpm
Required Oil Flow: 45-75 lpm
Capacity: 55 cc/rev
Pressure: 150 – 210 kg/cm2
Plate Dimensions: 950x550x25 (LxWxT) mm
Height: 800 mm
Weight: 350 kg
Pick up dimensions: 50-200-300 mm
VC60

Machine Size: 11-14 tonne
Impulse Force: 7.5 tonne
Vibration: 600 – 2000 rpm
Required Oil Flow: 85-105 lpm
Capacity: 63 cc/rev
Pressure: 150 – 210 kg/cm2
Plate Dimensions: 1145x700x28 (LxWxT) mm
Height: 850 mm
Weight: 644 kg
Pick up dimensions: 65-200-300 mm
VC80

Machine Size: 20-30 tonne
Impulse Force: 15 tonne
Vibration: 600 – 2000 rpm
Required Oil Flow: 120-170 lpm
Capacity: 80 cc/rev
Pressure: 150-210 kg/cm2
Plate Dimensions: 1250x850x28 (LxWxT) mm
Height: 975 mm
Weight: 1,060 kg
Pick up dimensions: 80-340-460 mm
VC90

Machine Size: 29-35 tonne
Impulse Force: 15 tonne
Vibration: 600 – 2000 rpm
Required Oil Flow: 120-170 lpm
Capacity: 100 cc/rev
Pressure: 180 – 210 kg/cm2
Plate Dimensions: 1350x950x32 (LxWxT) mm
Height: 1050 mm
Weight: 1,150 kg
Pick up dimensions: 90-400-515 mm
VC100

Machine Size: 29-35 tonne
Impulse Force: 15 tonne
Vibration: 600 – 2000 rpm
Required Oil Flow: 120-170 lpm
Capacity: 100 cc/rev
Pressure: 180 – 210 kg/cm2
Plate Dimensions: 1350x950x32 (LxWxT) mm
Height: 1050 mm
Weight: 1,150 kg
Pick up dimensions: 100-410-585 mm
