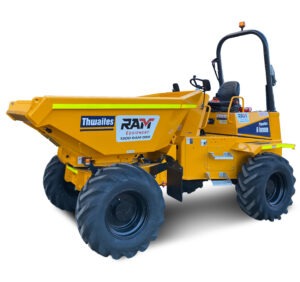

Thwaites Power Swivel Dumper (6T)

The Thwaites Power Swivel Dumper (6 tonne) is perfect for transporting, earthmoving, excavating materials, loading trucks/skips, and backfilling trenches.

Transmission

The Power-shuttle transmission with four gears with a column mounted control lever to drive/reverse, as well as a heavy duty gear driven transfer box. “Powershift” transmission with changes of speed and forward/reverse direction controlled by one column mounted lever.

Skip

The hydraulically Thwaites Power Swivel Dumper operates a fully welded 8 mm steel base plate, reinforced with box section to add strength to minimise skip damage. NO material traps. Thwaites Power Swivel mounted on a ball bearing turntable with powered rotation through 180 degrees by means of slewed twin cylinders, operated by control lever with a single dual-axis. Boasting a safety feature which automatically locks the skip in a central position whilst travelling.

Service Access

All maintenance and servicing is completed in-house at RAM Equipment. With our guarantee to be at your site for repairs to equipment within one working day. We understand how important time is when working on civil construction projects.

Brakes and Axles

Our twin circuit, fully enclosed multi-plate oil immersed discs, mounted on both axles with wear adjustment done automatically. A hand operated parking brake. Epicyclic reduction, heavy duty axles and the half shafts completely floating.

Kinglink Chassis

Front and rear chassis constructed from deep section folded steel plate, with three point Kinglink giving articulation and oscillation for better stability, traction and extra safety on site. Remote greasing point provided for lubrication of top Kinglink articulation pin.

Seating & Controls

Adjustable suspension seat, fitted with high visibility rigid seat belt with adjustable web, accessible from both sides. Audible warning device for handbrake in “on” position, electric horn, large pedal pads, ignition key, park brake and skip controls ready to hand. Super bright LED warning lights visible from the drivers position for all critical functions.

Electrics

Engine control unit with shutdown monitoring. Electronic equipment function includes diagnostic port and tri-function hour meter/ fault code reader/ battery volt meter. Fuse & relay panel housed in easy to access position, with all wiring contained in solid sealed conduit and all electrical components water resistant to IP67 rating.

Steering and Hydraulics

Single gear pump providing hydraulic functions includes priority power steering. Filter mounted on top of the tank accessible from ground level. Hydraulic test point fitted as standard.

To see more information on the Thwaites Power Swivel Dumper, view our specification sheet next to “create your order” and “check availability” above. Otherwise visit the Thwaites Official Website.
