Hire:

John Deere Skid Steer (4T)

Available for hire from RAM Equipment, the versatile 317G John Deere skid steer features a vertical-lift boom that precisely places pallets and carries big loads.

  • Vertical lift boom
  • Final Tier 4 (FT4)/EU Stage IV diesel engine packs plenty of power and torque
  • Work in soft underfoot conditions and side-slope stability
  • Excellent all-round visibility
  • Swing-out rear door enables easy, ground-level access

Simply add the equipment and attachments you would like to hire to your cart. Our team will then be in touch with pricing, confirmation of availability and to arrange for delivery. It’s that easy.

John Deere skid steer

Note: pricing includes GST and a 1% environmental levy

SPECS

Brands

Dimensions & Weight

Overall Length: 3,240 mm
Overall Height: 1,990 mm
Overall Width: 1,650 mm
Operating Weight: 3,824 kg
SWL: 965 kg

Range

Max Dump Height: 2,430 mm
Max Bucket Pin Height: 3,070 mm

Approximate Fuel Consumption

8L/hr

Transport Method

Tilt Tray

John Deere

ABOUT

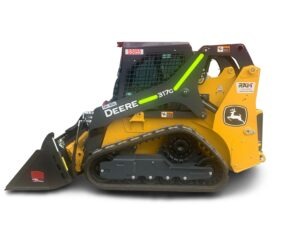

John Deere Skid Steer 317G

The John Deere 317G vertical-lift boom offers more lift height and reach at the top of the lift path, for more stability and truck-loading ability.

Engine

Final Tier 4 (FT4)/EU Stage IV diesel engine packs plenty of power and torque. Auxiliary flow rates make the most of an even broader range of attachments. Large coolers increase heat rejection for uninterrupted performance in severe, high-load conditions. Engine-mounted, belt-driven cooling fan delivers efficient, reliable performance.

Stability

Equipped with 12.6-inch-wide track, the John Deere skid steer ground pressure is just 4.5 psi, enabling work in soft underfoot conditions and side-slope stability.

Cab & Controls

Electrohydraulic (EH) joysticks are standard. Excellent all-around visibility is further enhanced with an LED side-lighting option. Optional rear view camera allows operators to see the jobsite behind the machine.

Serviceability

Swing-out rear door enables easy, ground-level access to daily service checkpoints and cooling system components. Hinged rear door and hydraulic cooler swing open, making trash removal and core cleanout simple. Spin-on engine oil and fuel filers mounted remotely behind the rear door allow quick changes.



For more on the RAM Equipment website, follow the link to hire skid steer loader.
