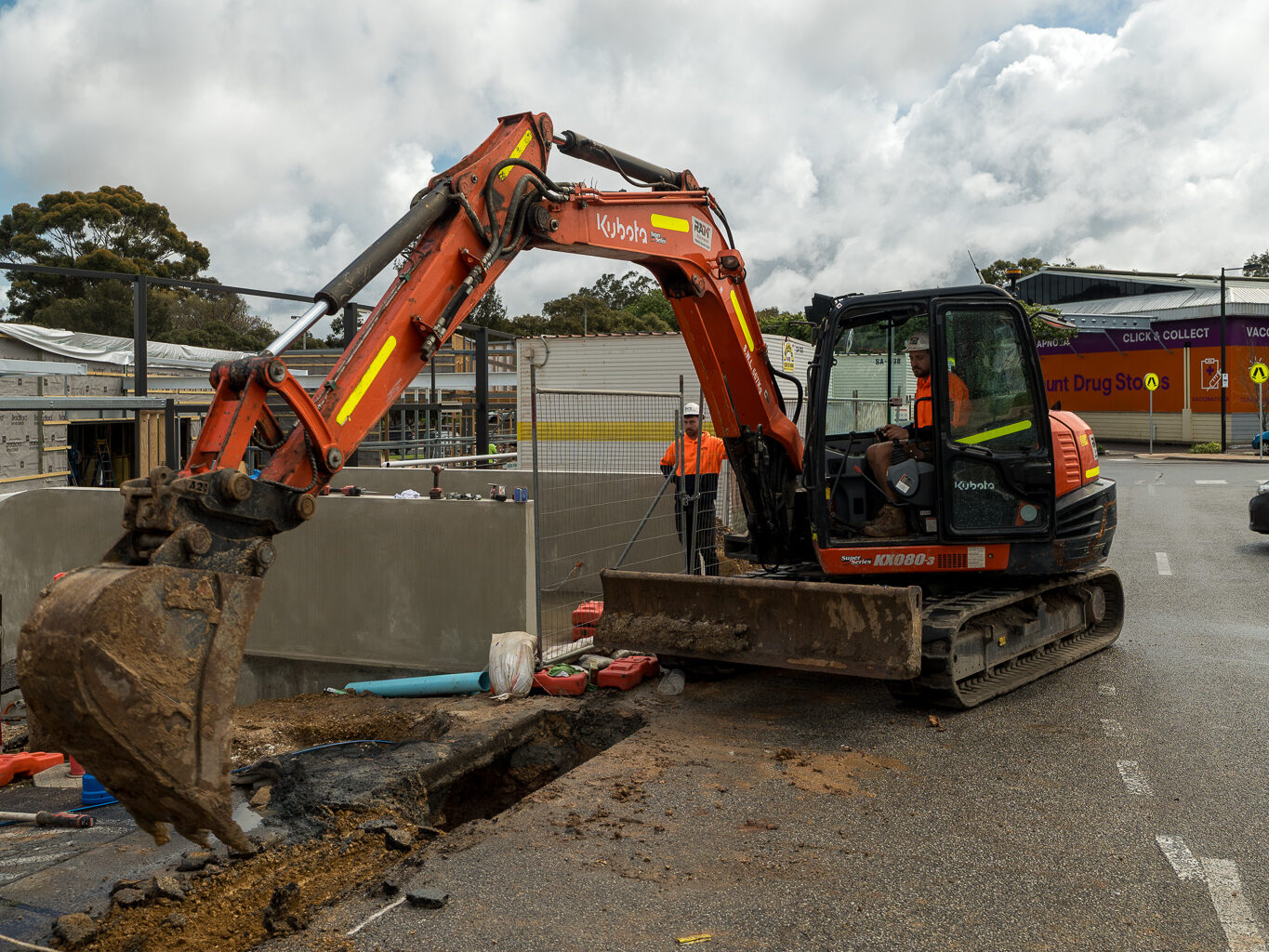

Kubota Excavator (8 Tonne)

Available from RAM Equipment, the Kubota 8 Tonne Mid-sized excavator is ideal for working in restrictive work areas.

  • Boom Anti Drop Valve
  • Two Speed Travel
  • Advanced Visibility Mirrors
  • Movable Console
  • Cab Guttering
  • Easy Open Front Window
  • Deluxe Suspension Seat
  • Increased Traction

Simply add the equipment and attachments you would like to hire to your cart. Our team will then be in touch with pricing, confirmation of availability and to arrange for delivery. It’s that easy.

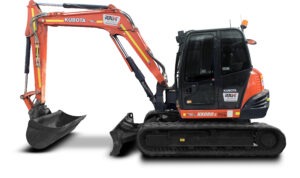

Kubota 8 Tonne Excavator


Note: pricing includes GST and a 1% environmental levy




Sizes Available

8 Tonne- Kubota KX080-3 Excavator

Key Features

Tier 4 Emissions Regulations: 2008 US EPA Compliant
Tracks: Rubber Tracks
Dozer Blade: Yes

Dimensions & Weight

Compact Length: 3460mm
Overall Length: 6450mm
Minimum Overall Width: 2200mm
Minimum Overall Height: 2540mm
Operating Weight: 8330kg
Fuel Tank Capacity: 115 L


Dig Reach: 7300mm
Dig Depth: 4600mm
Digging Radius: 7330mm


Tier Classification: Interim Tier 4 Emission Level
4 cylinder 3331 cc displacement 14.7 Kw ( 63.9 hp Nett) Turbo
Average Fuel Burn: 5L/Hr

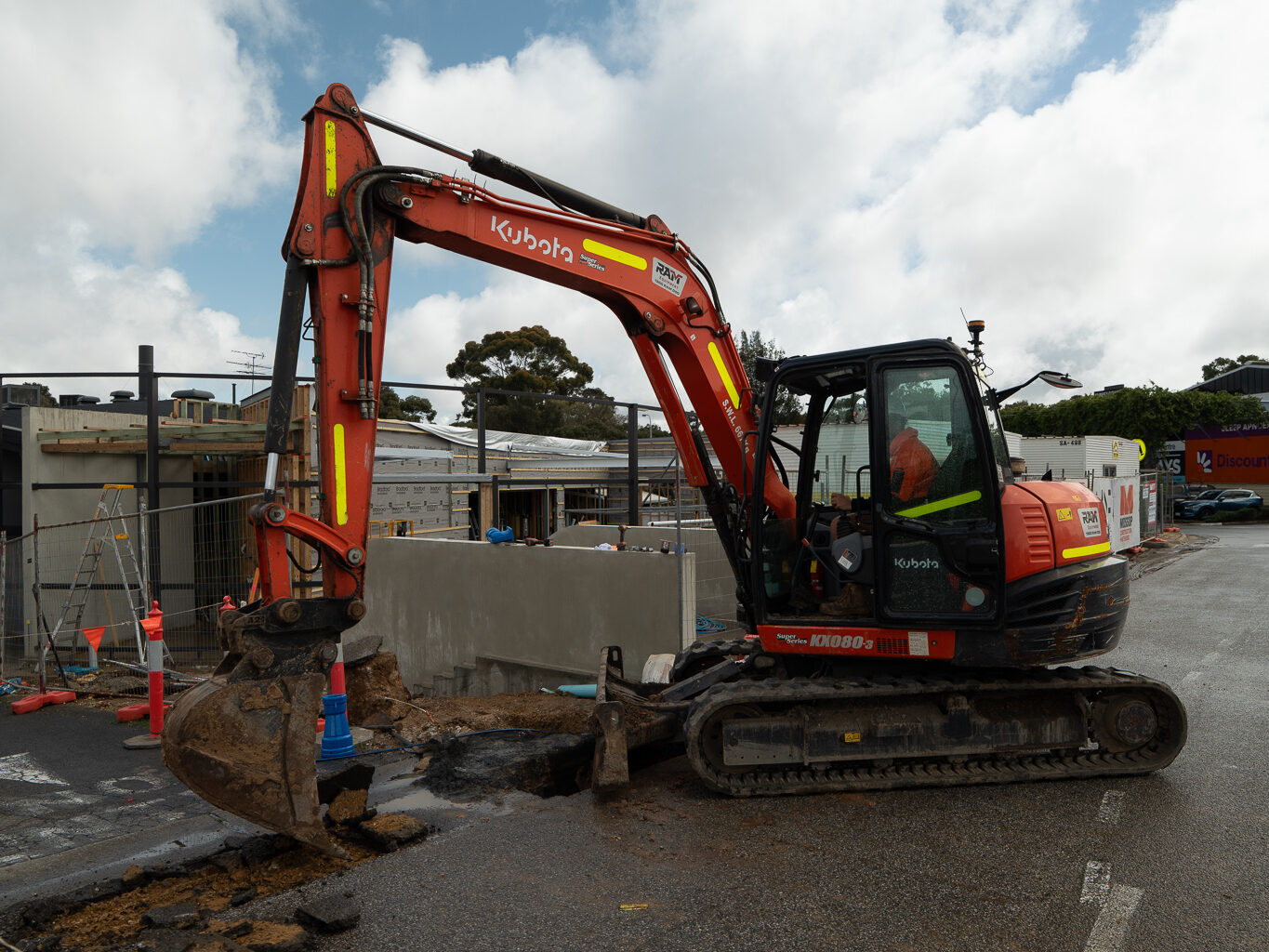

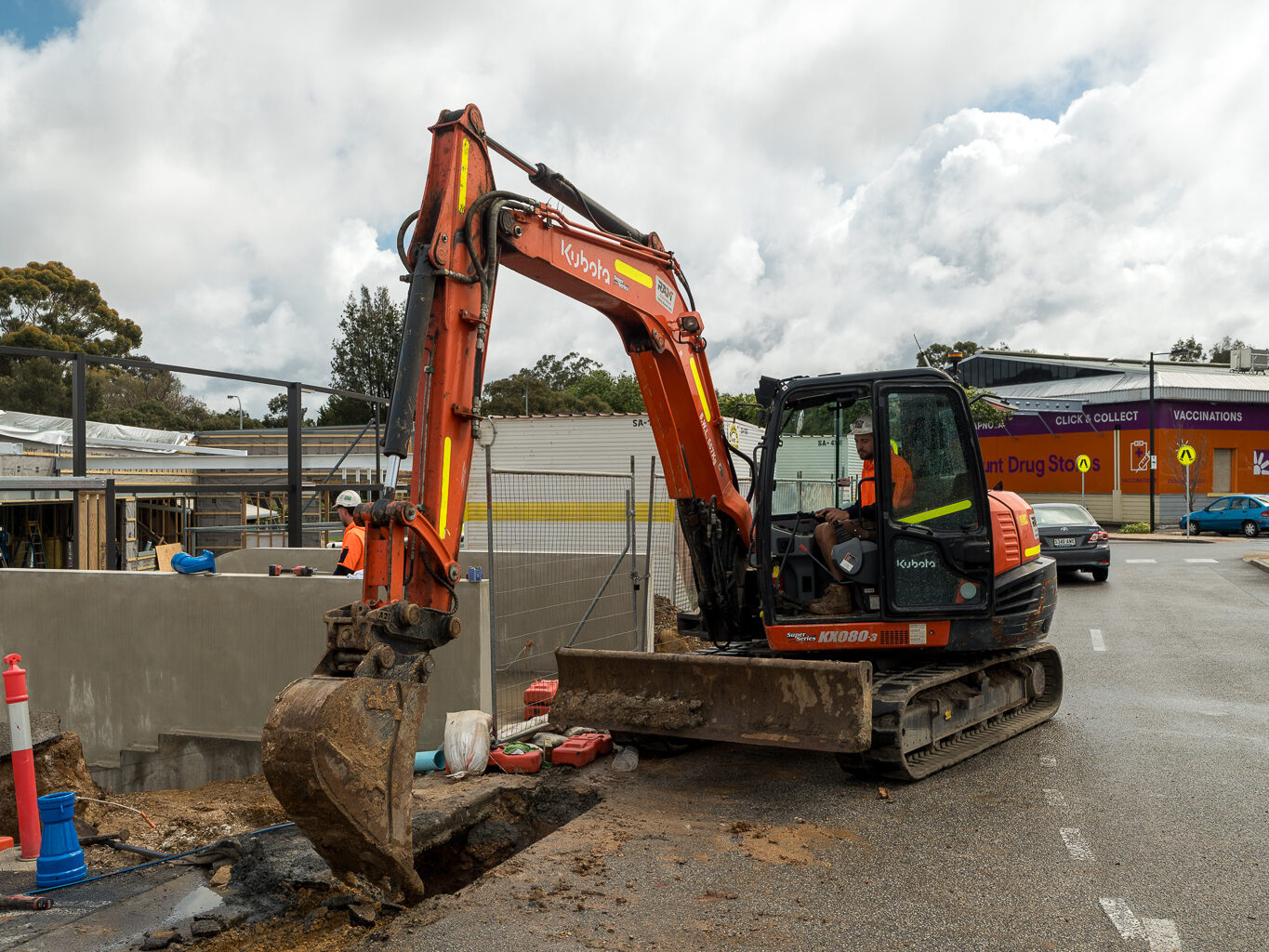

The Kubota 8 Tonne Excavator (KX080-3) available from RAM Equipment is ideal for urban environments where space is limited. Work in the comfort of a luxury cab and feel peace of mind with clever features that ensure operator safety, increase productivity and keep operating costs to a minimum.

Tackle almost anything

The Kubota 8 Tonne Excavator features a tight-tail swing radius with a smooth, harmonised, hydraulic system for versatility.

Furthermore, with the KX080-3S, elevated productivity levels are certain with the combination of 6,650 kg bucket force and 3,880 kg arm forces.

Lastly, save money, time and personnel with a high-capacity dozer blade – no separate machines required.

High performance in tight spots

This compact excavator is designed with a shorter rear overhang. Thanks to the contoured, tight tail design, the 8-tonne excavator is more stable, can handle a wider range of loads, and can work in more restrictive spaces than traditional tail swing excavators.

In addition, its compact 2,200-metre width makes it ideal for working in close conditions, and much
easier to transport between job sites.

Ultimate comfort

Designed and engineered with comfort in mind, Kubota’s high-back suspension seat reduces strain and minimises operator fatigue. It reclines to accommodate your posture and offers weight compensation, firm arm support, and retractable seat belts.

With features like a cup holder, digital control panel, easy open front window, and air conditioning, this mid-sized excavator truly puts the operator in the driver seat.

Kubota KX series

The Kubota KX series are amongst the toughest excavators available on the market today. Delivering superior performance and luxury comfort, the Kubota KX series has an excavator to meet every operator’s needs.

Not what you’re looking for? We have other great excavators for dry hire, and all late-model, low-hour as well!
