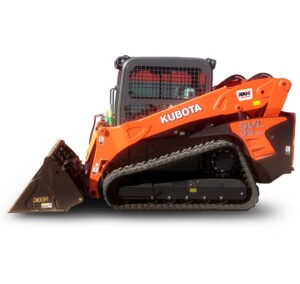

Kubota Skid Steer (5T)

Available for hire from RAM Equipment, Kubota is a trusted and world-leading manufacturer of construction equipment, is proud to introduce the new SVL97-2 Compact Track Loader. The new Kubota skid steer delivers superior bucket breakout force and lifting capacity, outstanding stability, a wide and comfortable operator area, and much more. When it comes to high performance, reliability and comfort, the road leads to Kubota.

  • Powerful hydraulic system
  • Unique vertical lift design
  • Standard two speed travel
  • Excellent 360 visibility
  • Diesel Particulate Filter (DPF) and Selective Catalytic Reduction (SCR) meet the latest Tier4 diesel emissions

Simply add the equipment and attachments you would like to hire to your cart. Our team will then be in touch with pricing, confirmation of availability and to arrange for delivery. It’s that easy.

Kubota Skid Steer


Note: pricing includes GST and a 1% environmental levy
Share on facebook
Share on email
Send to a friend



Dimensions & Weight

Overall Length: 3,929 mm
Overall Height: 2,116 mm
Overall Width: 1,962 mm
Operating Weight: 5,250 kg
SWL: 1,451 kg


Max Dump Height: 2,365 mm
Max Bucket Pin Height: 3,264 mm

Approximate Fuel Consumption


Transport Method

Tilt Tray



Kubota Unique Vertical Lift Design


High Bucket Hinge Pin Height
Kubota skid steers’ unique vertical lift is designed to deliver an exceptionally long reach of 1,035 mm. In addition, the tip of the arm is optimally shaped for a tall hinge pin height of 3,264 mm for easy dumping into trucks.

Standard Self-levelling Function
This feature helps keep the bucket or fork in a horizontal position without the need to manually adjust the angle during lifting.

Travel Performance

Standard Two-speed Travel. Shift from low gear at 8.0 km/h to high gear at 11.7 km/h to get the job done faster.

Pilot Valve with Shuttle Piston
This ensures consistent oil flow which improves stability when going straight.

Higher Ground Clearance
A high ground clearance of 293 mm lets you travel over large obstacles with ease.

Strong Traction Force
Kubota skid steers’ original track lug design gives you more grip and a stronger traction force of 5,524 kg.
