Simex Self Levelling Profiler (Planer)

The Simex self-levelling profiler has been designed for removing the entire layer of asphalt or cement in preparation for trenching or milling deteriorated sections for later resurfacing.

  • Optional dust prevention water system which can be mounted or integrated to the side shift frame
  • Excellent retention of milled material
  • Independent left and right adjust
  • Self-levelling and constant planning depth
  • High visibility for the operator
  • Optional drum widths and teeth layout available for different surfaces

Enquire today!

This product is customisable and made to order. Please complete the enquiry form below and our team will be in touch with options within 24 business hours.

ABOUT

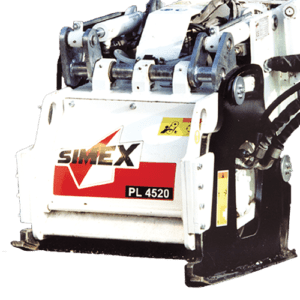

Simex Self Levelling Profiler (Planer)

The Simex Self Levelling Profiler also known as a planer is ideal for removing the entire layer of asphalt or cement in preparation for trenching or for milling deteriorated sections for resurfacing. The profiler also mills pre-defined sections on hard, compact surfaces. Additionally, it also provides the possibility to reuse milled material to backfill the trench.

The Simex self levelling profiler ensures a constant milling depth regardless of the ground contour and position of the attachment in relation to the skid steer. This is because of the lateral slides on the planer, which automatically aligns to the milling surface.

Furthermore, the Simex self levelling profiler/planer provides excellent visibility for the operator as well as maximum stability and no vibrations. Other impressive features include self-calibration, electrohydraulic valves, and a water spray kit with a tank built into the frame.

About Simex

Simex is a provider of innovative attachments for earthmoving machines, providing solutions to the most complex application challenges. Simex products are designed and engineered to be exceptionally durable and high-performing.

For thee widest range of attachments for your skid steer, excavator, or other earth moving equipment, RAM has you covered. Have a peek now!

SPECS

Brands

PL35.15

Standard Drum Width: 350 mm
Standard Drum Depth: 0-110 mm
Self Leveling Angle: 30 degrees
Side Shift: Mech or Hyd
Tilt: Option
Inclination: 16 degrees
Oil Pressure Range: 2320-3480 PSI
Recommended Oil Flow: 45-75 lpm
Weight: 590-850 kg

PL40.35

Standard Drum Width: 400 mm
Standard Drum Depth: 100-350 mm
Self Leveling Angle: 26 degrees
Side Shift: Hyd
Tilt: Auto/Hyd
Inclination: 16 degrees
Oil Pressure Range: 2610-4641 PSI
Recommended Oil Flow: 90-180 lpm
Weight: 1150-1270 kg

PL45.20

Standard Drum Width: 550 mm
Standard Drum Depth: 0-150 mm
Self Leveling Angle: 30 degrees
Side Shift: Hyd
Tilt: Auto/Hyd
Inclination: 16 degrees
Oil Pressure Range: 2320-4351 PSI
Recommended Oil Flow: 60-140 lpm
Weight: 790-940 kg

PL60.20

Standard Drum Width: 600 mm
Standard Drum Depth: 0-170 mm
Self Leveling Angle: 30 degrees
Side Shift: Hyd
Tilt: Auto/Hyd
Inclination: 16 degrees
Oil Pressure Range: 2320-4351 PSI
Recommended Oil Flow: 90-160 lpm
Weight: 950-1100 kg

PL60.25

Standard Drum Width: 600 mm
Standard Drum Depth: 0-250 mm
Self Leveling Angle: 26 degrees
Side Shift: Hyd
Tilt: Auto/Hyd
Inclination: 16 degrees
Oil Pressure Range: 2320-4351 PSI
Recommended Oil Flow: 90-160 lpm
Weight: 1200-1350 kg

PL100.25

Standard Drum Width: 1000 mm
Standard Drum Depth: 0-250 mm
Self Leveling Angle: 26 degrees
Side Shift: Hyd
Tilt: Auto/Hyd
Inclination: 16 degrees
Oil Pressure Range: 2610-5076 PSI
Recommended Oil Flow: 95-200 lpm
Weight: 1650-1760 kg

PL1000

Standard Drum Width: 1000 mm
Standard Drum Depth: 0-130 mm
Self Leveling Angle: 30 degrees
Side Shift: Hyd
Tilt: Auto/Hyd
Inclination: 16 degrees
Oil Pressure Range: 2610-5076 PSI
Recommended Oil Flow: 95-200 lpm
Weight: 1090-1200 kg

PL1200

Standard Drum Width: 1200 mm
Standard Drum Depth: 0-130 mm
Self Leveling Angle: 30 degrees
Side Shift: Hyd
Tilt: Auto/Hyd
Inclination: 16 degrees
Oil Pressure Range: 2610-5076 PSI
Recommended Oil Flow: 110-200 lpm
Weight: 1210-1320 kg
