Kobelco Excavator (13.5T)

The Kobelco 13.5 tonne large excavator offers an ultra short-tail swing radius, dozer blade, and offset boom. Known as the ultimate urban machine, it’s ideal for road work and working in tight areas.

  • Dozer blade
  • Air-conditioned cabin
  • Hydraulic boosting system
  • Lower fuel consumption and noise levels
  • LCD operator monitor
  • Suspension seat

Simply add the equipment and attachments you would like to hire to your cart. Our team will then be in touch with pricing, confirmation of availability and to arrange for delivery. It’s that easy.

Kobelco 13.5 tonne Excavator


Note: pricing includes GST and a 1% environmental levy
Share on facebook
Share on email
Send to a friend
Play Video



Dimensions & Weight

Overall Length: 7,430 mm
Overall Height: 2,200 mm
Overall Width: 2,490 mm
Operating Weight: 15,100 kg
SWL: 1,300 kg


Dig Reach: 8,150 mm
Dig Depth: 4,920 mm
Dig Radius: 7,570 mm

Approximate Fuel Consumption


Transport Method

Low Loader




Available from RAM Equipment, the Kobelco 13.5 Tonne Excavator combines raw power, exceptional agility and a choice of configurations, making it one of the most useful and versatile excavators. There are two types available in the RAM fleet; the offset boom and the mono boom versions.

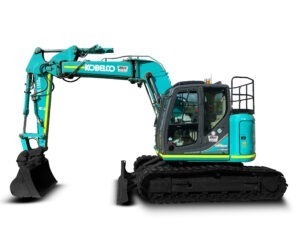

Offset Boom (SK135SR-3)

Ideal for urban work sites, the Kobelco 13.5 Tonne Excavator Offset boom version, comes with a dozer blade making it easy to work in tight spaces and dig right next to walls. The boom is also both lightweight and slim for smooth operation.

In addition, the operator gets the best of both worlds: a roomy cab fitted on a compact upper body. With a small working radius, the machine is perfect for continuous digging, swinging, and loading operations in tight spaces.

ECO-mode: engineered for economy

The Kobelco 13.5 tonne excavator ECO-mode maximizes the operating efficiency of the engine and other components to achieve much greater fuel efficiency. Just press a button to choose the operation mode best suited to the task at hand and the working conditions.

New Stage IV compliance engine
The new type of Stage IV compliant engine is fitted with a diesel oxidation catalyst (DOC) and an SCR device to control emissions without using a diesel particulate filter (DPF). It has a large-capacity Urea tank, extending intervals between fill-ups.
